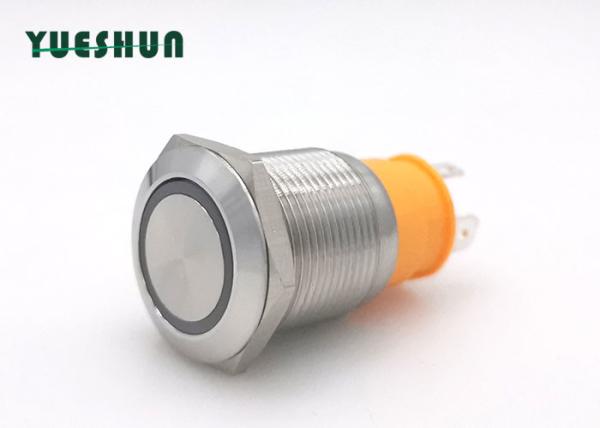

19mm High Current Metal 15A 20A Momentary Anti Vandal Push Button Switch Normal Open
Product features
1.Gobal Origination-20A metal push button switch,with 2500w resistance load capacity;
2.Optional connector,To ensure contact performance,reduce waste of labor;
3.With concave design,operation is more convenient;
4.With super metal texture and high-end of appearance design,improve the ability to resist welding deformation;
5.Waterproof and dustproof grade up to IP67;
6.Mechanical life: up to 600,000times,it can work at -30℃~80℃;
7.1NO function,4pins,LED;
8.It has applied of many patents ,CCC,CE approved;
9.19MM large current 20A IP65 waterproof self locking metal push button switch
| Product Description |
| Product name | 20A Large current Metal push button switch |
| Produstion Type | GQ19AF-10E/S | GQ19AF-10E/N |
| Body material | Stainless steel | Stainless steel |
| Button material | Stainless steel | Stainless steel |
| Base material | PBT | PBT |
| Mounting hole size | 19mm |
| Max. Current | 20A 15A |
| Max. Voltage | 250V AC |
| Contact structure | 1NO OR 1NC |
| Operation type | Momentary or Latching |
| Head shape | Flat Round Head |
| Emitting Type | Ring Logo illuminated |
| Lamp color | Red Green Blue Yellow White |
| Lamp voltage | 3V 6V 12V 24V 36V 48V 110V 220V 380V |
| Product Parameter |
| Mechanical life | More than 1,000,000 times |
| Electrical life | ore than 200,000 times |
| Operating temperature | -25℃- +55℃ |
| Operating humidity | 45-82%RH |
| Operating distance | About 2mm |
| Operating pressure | About 3N |
| Protection level | IP67 |
| Insulation resistance | More than 1000MΩ |
| Contact resistance | ≤ 50mΩ |

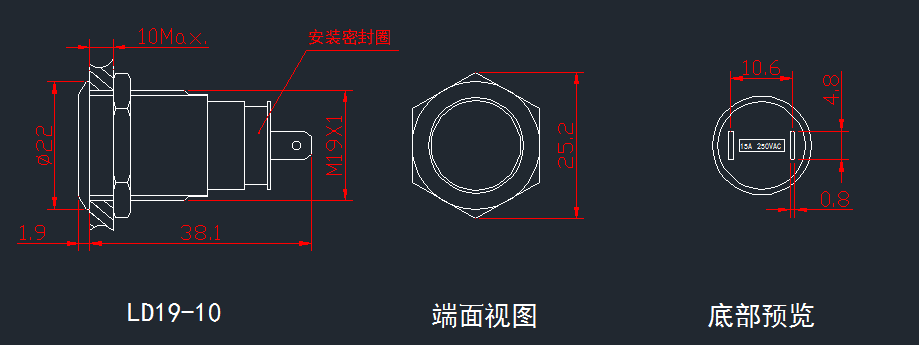

Size
Connection Schematic diagram
Company Introduction:
We are specialized in producing high quality metal push button switches, plastic push button switches, Indicators, as well as the accessories. Our products are beautiful, compact, high reliable, and durable, which are widely used in various industrial cabinets, household appliances, automation industries cabinets, etc. We offer all the popular panel cutout size such as 12mm, 16mm, 19mm, 22mm, 25mm, etc. and multiple LED colors such as blue, green, white, yellow, etc. We promise to use premium materials for all our products whatever metal or plastic. We ensure each product is perfect before coming out, so we check and test them one by one. And also we have got CE and RoHS approvals for all of our products.
F&Q
Q1. What is your terms of packing? IP67 waterproof push button switch
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, DDU.
Q4. How about your delivery time?
A: Generally, it will take 3 to 10 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
