Brand Name : YUESHUN
Model Number : LD19-10E/L
Certification : ROHS CE
Place of Origin : CHINA ZHEJIANG
MOQ : Negotiable
Price : Negotiable
Payment Terms : T/T to our company account or by paypal
Supply Ability : 5000Pcs/Day
Delivery Time : 3-7 work days
Packaging Details : Blister Package+ Foam+Color box Or Upon your request
Mounting hole diameter : 19mm
color : blabk
material : aluminum
type : push button switch
pin : 4 pins
operation type : momentary latching
Aluminum Steel Flat Head Push Button Switch Led Illuminated 19mm Black Color
Product Feature:
——Our push buttons use 95% silver contacts,with good contact performance.
——1NO-normal open ,1NC can be customized.
——19mm mounting hole size,momentary latching
Product Detailsswi
switch type | LD19-10E/L |
head shape | flat round head |
size | 19mm |
Max.Current | 15A |
Max.Voltage | 250VAC DC |
led color | blue red green yellow white orange |
contact resistance | ≤50Ω |
Insulation Resistance | ≥10000MΩ |
Product size reference:

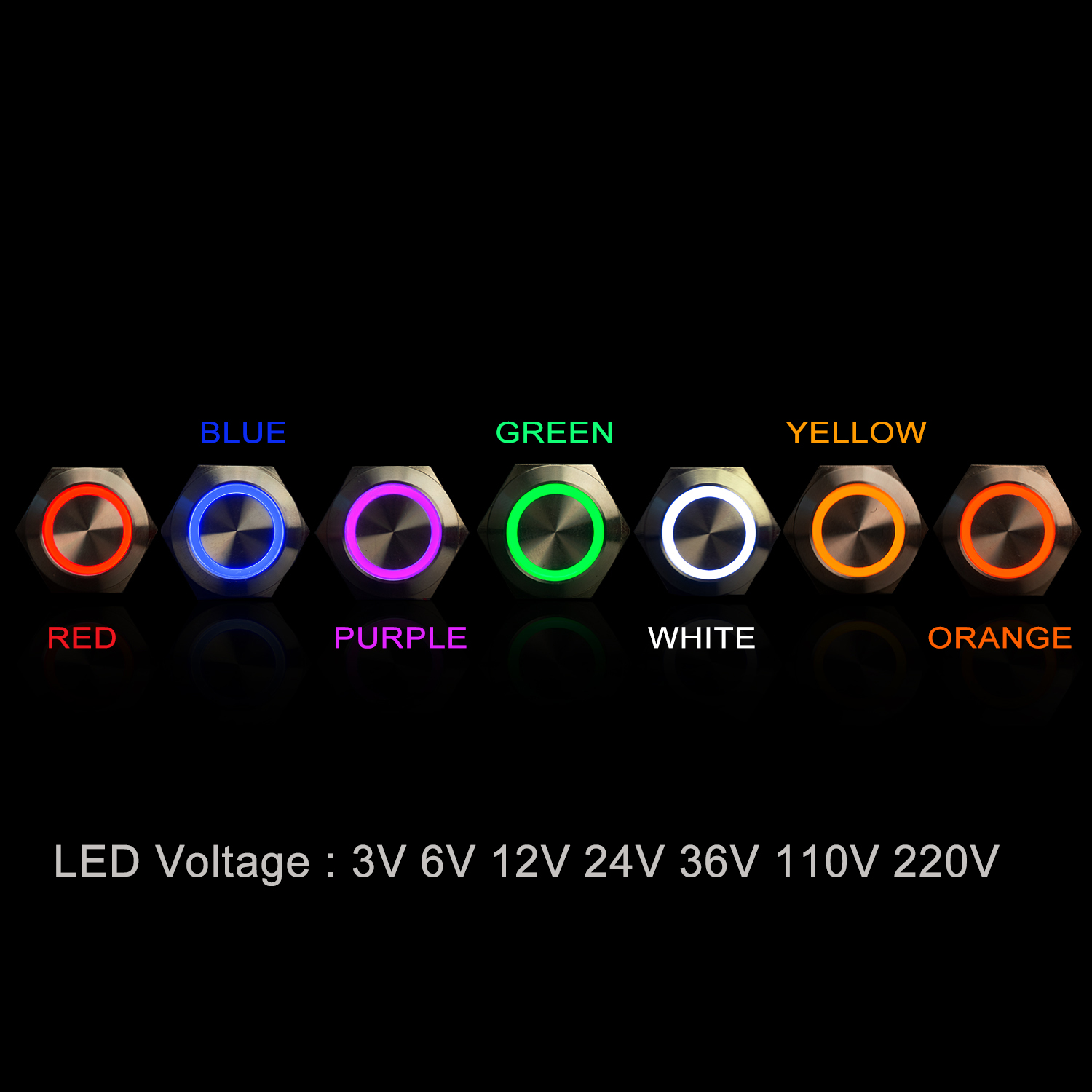

LED color reference:
F&Q:
Q: Can you provide samples ? Are the samples free ?
A: Yes, we can provide samples. Normally, we provide 1-3pcs free samples for test or quality checking.But you have to pay for the shipping cost. If you need many items, or need more qty for each item, we will charge for the samples.
Q: What is Momentary function?
A: When you push switch and then move your finger, the actuator will back to the original position.
Q: What is Latching function?
A: When you press the button, it will be ON and keeps locked until you press again, it will return to original position.
Packing:
1:We use foam boxes to reduce accidents in transit and protect our products from damage.
2:We have 50 pieces/box and 25 pieces/box of packaging, using foam box to protect each product, effectively avoid the damage caused by direct friction between products.
3:Each of our products will go through strict testing before they leave the factory to ensure that the products reach the customer is in good condition.If you have any problem with the products you receive, please contact us immediately and we will deal with it properly.
![]() |
