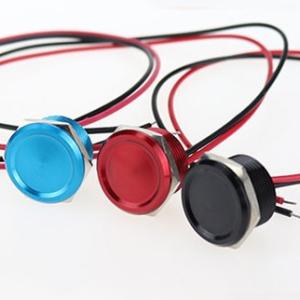

316 Stainless Steel Underwater 22mm Ip68 Seal Piezo Switch Momentary
Quick Details:
★ All our products have passed the CE, CCC, ROHS etc. certifications ★Our push buttons use 95% silver contacts,with good contact performance.
★ Our products are of exquisite workmanship,push button's terminal pins are firm in the plastic,integrating with it.
★ Our Metal push button switch's Mechanical Life more than 100,0000 times,with long service life.
★ It is a Good quality push button, its push feeling is very good.
★ Our push buttons are made of anti-damage metal, not easy to fade, excellent performance, IP67 protection level.
★ It is waterproof, dustproof and destruction-proof. It can be used in outdoor harsh environment.
Product Parameter
| Product Name | Piezo Switch |
| Mounting Hole Size | 22mm |
| Max Switch Rating | 200mA / 24VDC/AC |
| Operation Type | Momentary |
| Head Shape | Flat Round head |
| Terminal Type | 2 wires of 0.22 square,30mm ( Wire length can be customized.) |
| Body Material | 316 Stainless Steel |
| Pulse Time | Less than or equal to 50ms |
| IP Degree | IP68 IEC529 |
| Contact Resistance | ≤ 50mΩ |
| Operation Temperature | -40℃～+70℃ |
| Operation Humidity | 10%-90% |
| Operating Life | More than 200000 cycles |
| Panel Thickness | 1-12mm |
| Torque | 5-14Nm |
| Operating Pressure | About 3-8N |
| LED Type | ring |
| LED Color | Red / Green / Blue / Yellow / White / Orange / Purple |
| LED Voltage | 3V / 6V / 12V / 24V / 36V / 110V / 220V / 380V |
| LED Life | more than 40000 lifes |

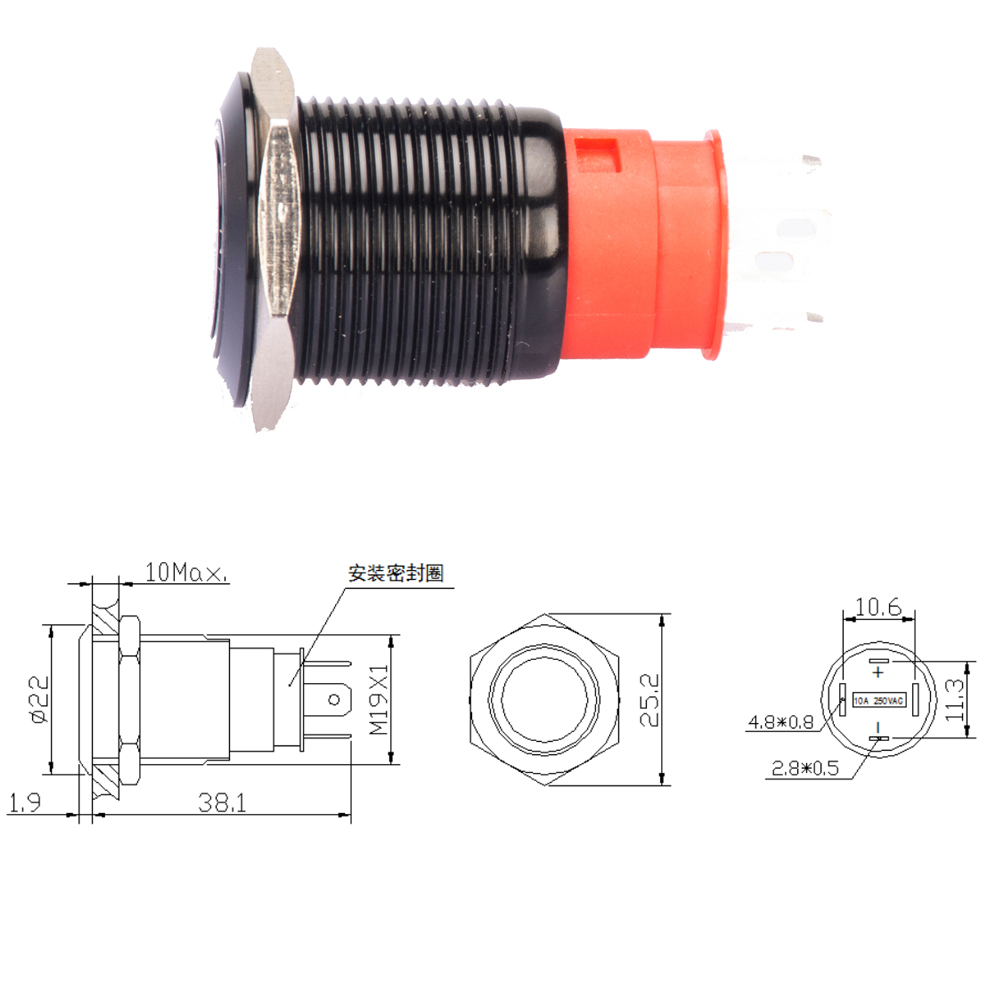

Product size:

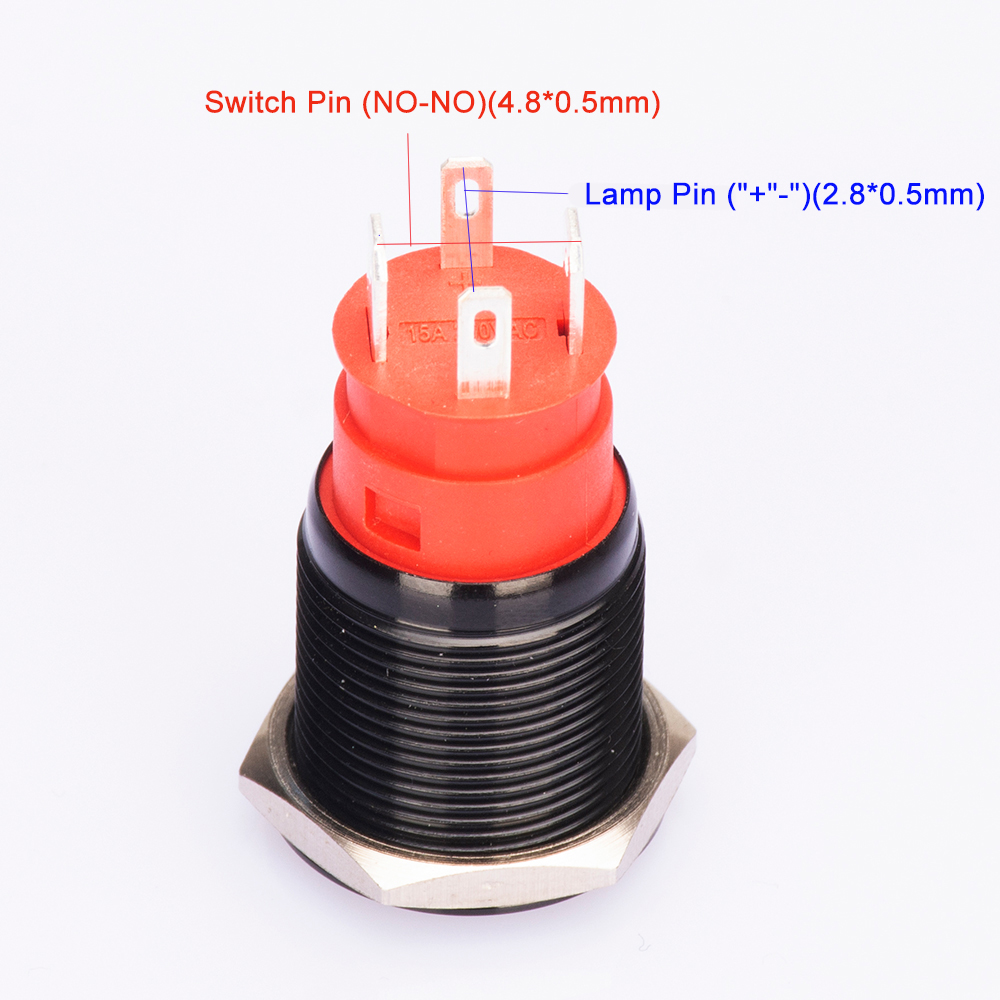

PIN Terminal:
4 Terminal Pin
LED Pin ("+",:-:), 2.8*0.5mm
Switch Pin (NO-NO), 4.8*0.5mm
Product display:

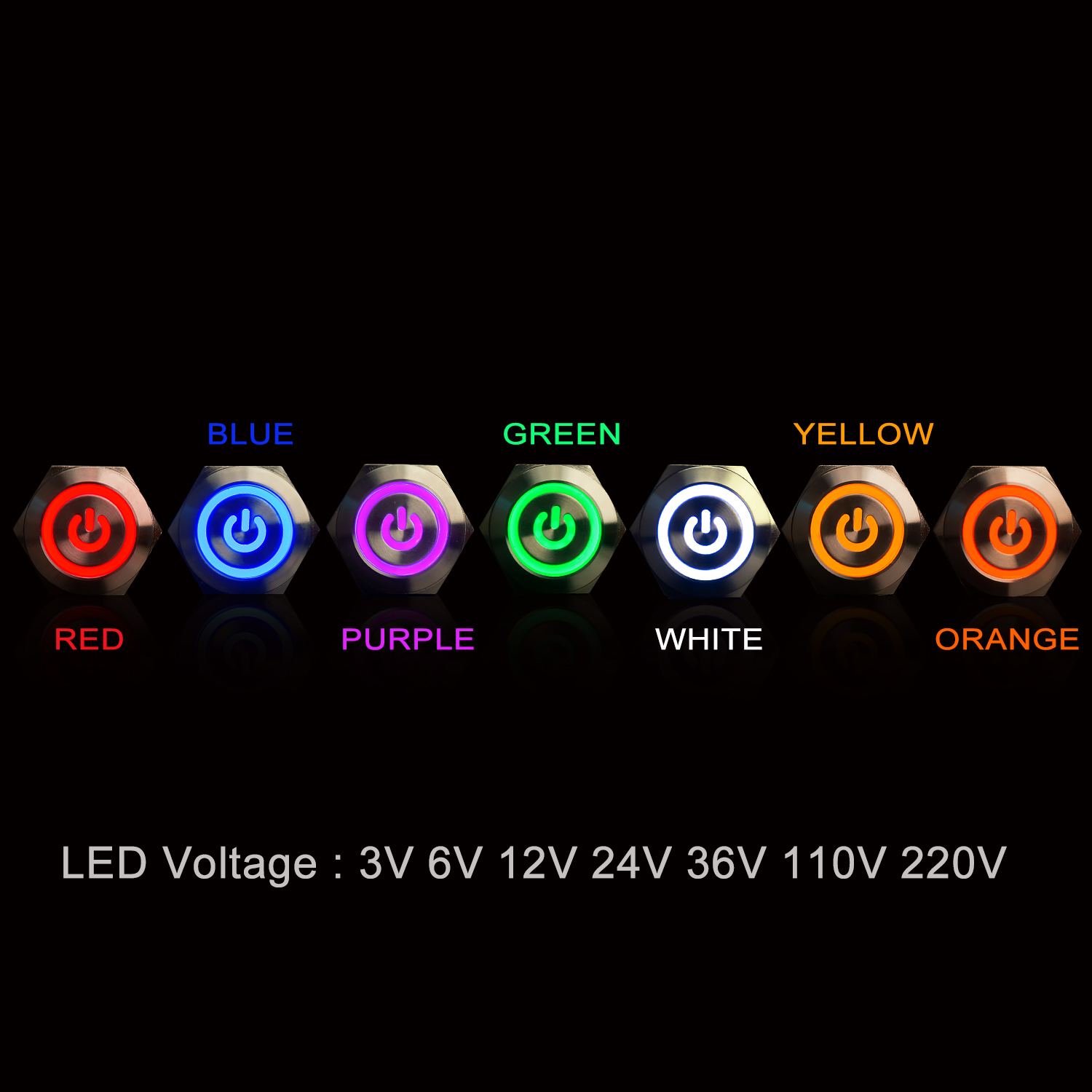

LED Color :
Red / Green / Blue / Yellow / White / Orange / Purple
F&Q:
Q:How about your Product Quality?
A:our products quality is good and most of all products approval of CE and ROHS. After you use it, you will know more understanding for our quality.
Q:Do you have a catalog? Can you send me the catalog to me for checking them ?
A: Yes , We have product catalog.Please contact us on line or send an Email for sending the catalog.
Q: Can you make the switch as our requirement?
A: Yes, we can. We are professional switch manfacturer with over 20 years research experience.
Q: What kind of payment do you accept ? Can I pay RMB ?
A: We accept T/T(Wire transfer),Western Union and Paypal,credit card. Please be sure that we can receive the same amount of the Invoice. And you can pay money In RMB. No problem.
Packing&Transport:
